ZEUS3

Transmitters

1/10

2/10

3/10

4/10

5/10

6/10

7/10

8/10

9/10

10/10

New

Solid and versatile

It’s power in action, a blend of reliability and versatility wrapped in a command station without compromises. With a compact yet powerfully optimized design, every millimeter is maximized to offer you the complete customization you need. Designed for complex applications, it supports up to 6 single-axis joysticks or 2 dual-axis joysticks, while its spacious lateral areas allow you to easily add auxiliary controls. ZEUS3 is not just a transmitter; it’s a workhorse designed to break through every limit.

Download PDF sheet Request a quote

Optionals Receivers

Fields of application

Sewer vacuum pumps

Forklifters loaders

Recovery and tow vehicles

Electric overhead travelling (EOT) cranes

Concrete mixing plants

Tracked machines

Demolition

Excavators

Crushers and screeners

Tower cranes

Forestry and recycling cranes

Hydraulic cranes

Ship and marine cranes

Harbour cranes

Harvesting machines

Trenching machines

Tunneling boring machines (TBM)

Forestry machinery

Yacht/boat mooring

Drilling machines

Aerial platforms

Concrete pumps

Telehandlers

Cableways rope cranes

Travel lift

Others

Main features Certifications Main technical data Receivers

No limits of application!

IMET supports Manufacturers and System Integrators in customizing products according to the needs of their applications. Prototypes and pilot series are created. Once the specifications are defined, the customer plans the supplies. The technology and systems that IMET has invested in enable a large and diversified production capacity, ensuring product repeatability within timelines that meet the customer's needs.

Total configurability

The CNC drilling of the boxes and the multi-colored digital printing and cutting of the panels are realized internally. Along with a highly dynamic Technical Department, IMET can meet the most varied needs of manufacturers. The positioning of the components and the symbology are fully customizable.

Durability

With a focus on sustainability and long-term preservation, we use high-quality materials and components. IMET radio controls are designed to be used in the most extreme environments. To ensure durability, the products are tested internally with instruments that verify the protection level against liquid and dust penetration, aging through climatic tests, UV light, salt mist, and incandescent wire tests.

Certified quality and safety

ZEUS3 is certified according to international standards, ensuring global coverage. With these certifications, ZEUS3 is the professional partner for use in all markets, ensuring high quality and safety.

Repairable over time

Durable and repairable, this is the perspective on which IMET products are designed, all in function of a paradigm of environmental sustainability and cost reduction. There’s certainty of spare parts supplies over time, also for systems at the end of lifecycle, thanks to a structured and well-stocked warehouse.

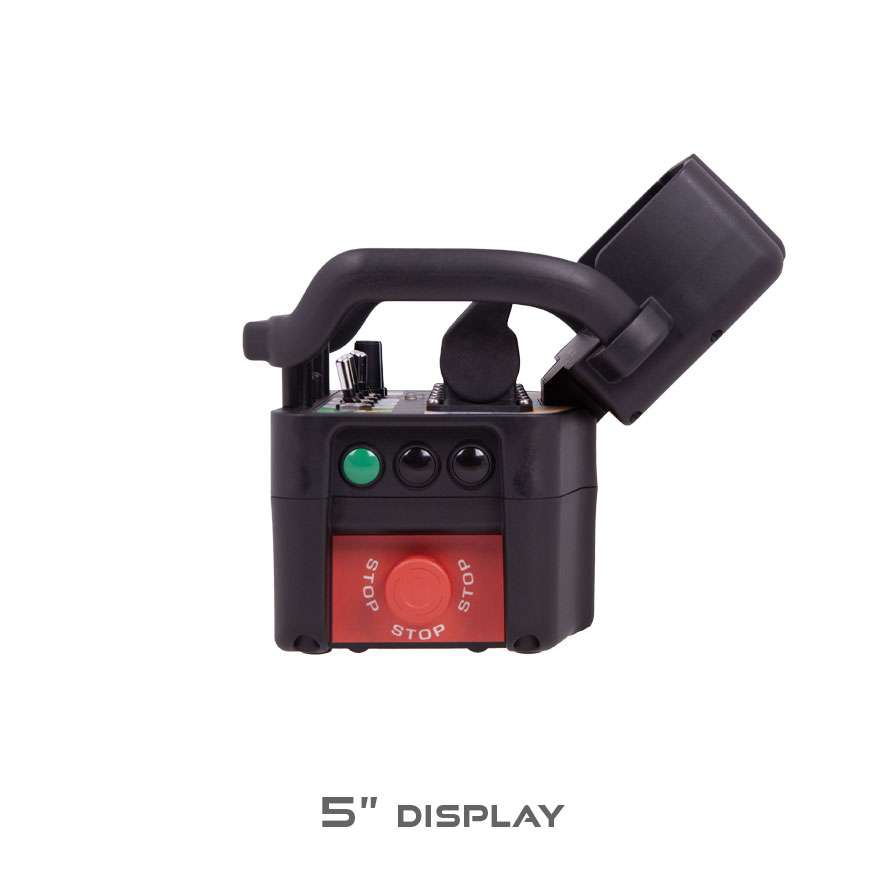

4.3" or 5" Color Display

GFX (STMicroelectronics®) and CDS (CODESYS®) 16.700.000 million color and up to 1000 nits brightness color graphic display. It allows a clear and clear display of information even in environments with intense sunlight.

Operating logic

IMET remote controls having physical outputs and depending on quantity, can be equipped with complex operating logic, developed according to manufacturer’s specifications. Our Technical Department, thanks to the know-how acquired in decades of experience in every sector, is capable of following you in every step of development.

Programming and diagnostic

Through a dedicated software (sold separately), you can set-up some parameters of the system. The programming tool acts as an interface to the PC. This device allows the reading of any diagnostic information about the system operation.

Harsh environments

The remote controls are designed and built to be used in the most demanding environments. In order to ensure the durability, the products are tested internally with instrumentation and systems that check infiltration, aging, salt spray, UV, fire; only to mention some.

Monoaxial Joystick

The product designed in IMET with unique characteristics for the market. Based on optical reading technology, it is free of mobile electrical parts. Tested for 15,000,000 maneuvers and equipped with a +/-40 rotation angle, it guarantees precision and tactile sensitivity. UMFS protection up to PL d Cat. 3. Available in two versions: inclined lever or straight lever. It can also be used in mixed configurations to simplify the identification of maneuvers.

Biaxial Joystick

Thanks to the optical reading technology conceived by IMET, our biaxial joysticks guarantee the operator surgical precision and a tactile control feeling of the objects being moved. Tested for 15,000,000 maneuvers and equipped with a travel angle of up to +/-40". Protection UMFS up to PL d Cat. 3. The range covers every need: stepless proportional joysticks, step joysticks, with interlocked axes, with button of various colors.

Triaxial Joystick

Always using optical reading technology, the IMET triaxial joystick allows you to have in one hand three proportional functions simultaneously. UMFS protection up to PL d Cat. 3.

Removable battery

Long-lasting rechargeable Li-Po or Ni-MH batteries allow continuous operation and a negligible memory effect. They are easily removable thanks to the quick coupling and are protected from any of liquid and powder penetration. Gold-plated contacts ensure stability and long service life.

CE certification

UKCA (United Kingdom) certification

IC certification

IC (Canada) certification

FCC certification

FCC (USA) certification

MIC certification

MIC (Japan) certification

EAC certification

ACMA certification

ACMA (Australia) certification

ZEUS3

Dimensions (L.W.A.)

230 x 200 x 175 mm / 9 x 7,9 x 6,9 in

Dimensions with display 5" (L.W.A.)

230 x 240 x 215 mm / 9 x 9,5 x 8,5 in

Weight (battery included)

Min 1600 g / 3,5 lb - Max 2100 g / 4,6 lb

Max number of ON/OFF commands

Max number of analog commands (optional)

Max number of single-axis joysticks

Max number of dual-axis joysticks

Range

100 m / 330 ft

Casing material

Charged Nylon UL94 HB

Battery

NiMh 2,4V 4300 mAh /Li-ion 3,7V 6700 mAh

Autonomy at 20°C with charged battery in continuous service

≃ 22 hours

UMFS protection

STOP	PLe Cat.4/SIL3
JOYSTICK	PLd Cat.3/SIL3
SELECTOR LEVER - BUTTON	PLc Cat.2/SIL2

Operating frequency 1

I.S.M. Band 433.050-434.790 MHz 69 programmable channels in AFA mode or on fixed channel. Max power: 1 mW e.r.p

Operating frequency 2

I.S.M. 434.040-434.790 MHz 30 programmable channels in AFA mode or on fixed channel. Max power: 10 mW e.r.p

Operating frequency 3

2,4 GHz 38 ch. Max power: 10 mW e.r.p

Operating frequency 4

I.S.M. Band 863.100-869.850 MHz 32 canali

Operating frequency 5

Band 915.200-927.800 MHz 64 canali

Monochromatic display

3.5"

Color graphic display (optional)

5" / 4.3"

Operating temperature

-25°C +55°C / -13°F +133°F

Degree of protection

IP 65

Empfänger für Fernbedienungen für industrielle Anwendungen

Receiver Receiver S DC Discover more

Receiver Receiver S AC Discover more

Receiver Receiver L DC Discover more

Receiver Receiver L AC Discover more

Receiver Receiver H DC Discover more

Receiver Receiver M AC Discover more

Additional optionals

Serial cable

For systems used in environments where radio frequency is not allowed or in emergency situations where batteries are not available. By means of a cable connection between transmitter and receiver, the transmission via radio is temporarily excluded and the transmitter is fed directly from the receiver unit.

Kapta

KAPTA allows the operator to make unlimited and rapid pairings between transmitting and receiving units, without the need of opening the devices. It always ensures exclusive control of the machine to a single operator.

Multi receiving and/or multi transmitting optional

MTRS allows a transmitter to communicate simultaneously with multiple receivers, also with data-feedback, and to pass the exclusive control of a receiver to other transmitters through a secure Lock and Unlock procedure.

RTAS Real Time Analog Setup

RTAS is a technology that allows the calibration of proportional outputs directly from the transmitting unit. Following the relevant procedure, which is protected by an access code, it is possible to vary the minimum and the maximum limits for each movement of the machine.

Tilt Sensor

TILT SENSOR secures the system if the transmitter is in an abnormal position or accidentally falls to the ground.

DSC Dynamic Speed Control

Precision and safety in movements are fundamental in the performance of the job. The DSC feature allows to vary in real-time and in a continuous way, the speed of the machine movements, until obtaining the desired accuracy.
