Receiver L AC

Receivers

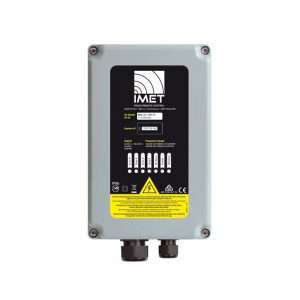

Ricevente L IMET

The L AC receiver, for its compact size and surprising versatility, is the ideal receiver for most ON/OFF AC applications. Its installation on the machine is simple and non-invasive.

Download PDF sheet Request a quote

No limits of application!

IMET supports Manufacturers and System Integrators in customizing products according to the needs of their applications. Prototypes and pilot series are created. Once the specifications are defined, the customer plans the supplies. The technology and systems that IMET has invested in enable a large and diversified production capacity, ensuring product repeatability within timelines that meet the customer's needs.

Durability

With a focus on sustainability and long-term preservation, we use high-quality materials and components. IMET radio controls are designed to be used in the most extreme environments. To ensure durability, the products are tested internally with instruments that verify the protection level against liquid and dust penetration, aging through climatic tests, UV light, salt mist, and incandescent wire tests.

Repairable over time

Durable and repairable, this is the perspective on which IMET products are designed, all in function of a paradigm of environmental sustainability and cost reduction. There’s certainty of spare parts supplies over time, also for systems at the end of lifecycle, thanks to a structured and well-stocked warehouse.

Operating logic

IMET remote controls having physical outputs and depending on quantity, can be equipped with complex operating logic, developed according to manufacturer’s specifications. Our Technical Department, thanks to the know-how acquired in decades of experience in every sector, is capable of following you in every step of development.
Certificazione-TUVnord
TÜV nord certification

Product conforming to the machinery directive 2006/42/CE certified by TÜV NORD Notified Body nr. NB 2261

Certificazione CE
CE certification

CE certification

Certificazione-UKCA
UKCA (United Kingdom) certification

UKCA (United Kingdom) certification

Certificazione IC
IC certification

IC (Canada) certification

Certificazione FCC
FCC certification

FCC (USA) certification

Certificazione MIC
MIC certification

MIC (Japan) certification

Certificazione KCC
KCC certification

KCC (Korea) certification

Certificazione EAC
EAC certification

EAC certification

Certificazione ACMA
ACMA certification

ACMA (Australia) certification

L AC
Supply voltage
24-240 VAC (50-60 Hz);
Safety commands
STOP, Safety-Enable
Commands
8, 13, 20 relays (PWM, current, voltage)
STOP category *
until PLe Cat 4
Field bus
RS232 / RS485 CAN_Bus CANOpen Profinet, Ethernet IP
Operating temperature
-25°C +60°C / -13°F +140°F
Degree of protection
IP 66
Dimensions
140 x 65 x 230 mm / 5,5 x 2,5 x 9 in
Weight
1700 g / 3,74 lb
* = depends on the configuration
