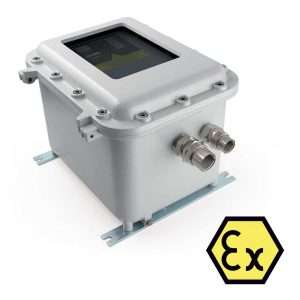

Receiving unit Explosion proof
Receivers
Device group II. The device is intended for use in environments where explosive atmospheres are likely to occur;
High-level of protection: category 2. Intended use in environments where explosive gas atmospheres are likely to occur, due to vapors, mists or mixtures of air and dust;
System for the protection of potentially explosive gases and dusts. The device remains powered and operating in Zones 1, 2 (G) and 21, 22 (D);
Explosion-proof enclosure;
Temperature Class 85 °C;
Fully protected against dust and powerful water jets (IP66);
The box is prepared with a 1″ cable gland IOS7/ 1RC and ¾” IOS7/ 1RC barrier for armed cables with specifications: ATEX Ex ll2GD Exd ll C IP 66;
Operating range 70 m without obstacles.
